Learn about Digital Multimeters

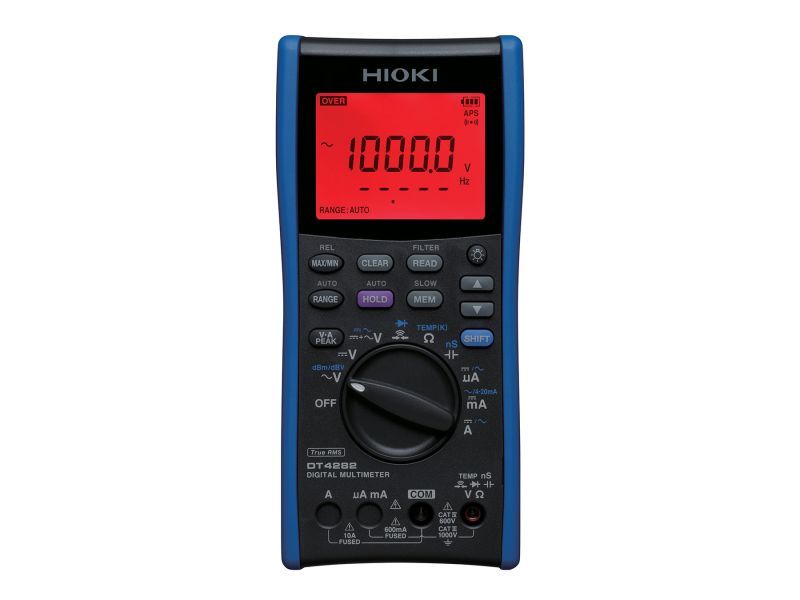

A digital multimeter (DMM) is an electronic test instrument that measures electrical quantities such as voltage, current, and resistance. Unlike older analog meters, DMMs use a digital display (often LCD) driven by internal circuitry (ADC, microcontroller, etc.), giving precise numeric readings. DMMs can handle both direct current (DC) and alternating current (AC) signals and often include multiple functions (unlike a standalone voltmeter or ammeter). They have largely replaced analog VOMs (volt-ohm-milli-meters) in most applications because they are more accurate, cost-effective, and easier to read.

How a Digital Multimeter Works?

Internally, a DMM routes the input signal through protective elements (fuses, resistors, attenuators) and uses a built-in analog-to-digital converter (ADC) to turn the measured quantity into a digital value. For example, to measure voltage it passes the input through a voltage divider and digitizes the result; to measure current it uses a low-value shunt resistor. The microcontroller then computes the value and shows it on the display. Because of this, DMMs display values in digits instead of a moving needle, eliminating much of the guesswork of analog scales. Digital readouts can show precise values (including sign for polarity) and are often more stable. Most modern meters automatically select the range (auto-ranging), adapt to rapidly changing signals, and provide extra functions like data hold, max/min readings, and backlighting.

Key Features and Functions

A DMM typically offers several measurement functions, each selected by a symbol on the dial:

• DC Voltage (V-): Measures steady voltage. The display shows the difference in electric potential between two points. Most DMMs can measure up to hundreds of volts DC.

• AC Voltage (V~): Measures alternating voltage (e.g. home outlet, AC generators). The meter displays the effective (RMS) voltage of an AC signal. (Note: True-RMS meters measure the exact RMS value even for non-sine waves.)

• DC Current (A-): Measures steady current flow. The meter must be placed in series in the circuit, as current flow through the meter is required. Common ranges are milliamps (mA) and amps (A).

• AC Current (A~): Measures alternating current flow in a circuit. Some DMMs require a special clamp accessory for high AC currents.

• Resistance (Ω): Measures how strongly a component resists current. The meter passes a small test current through the component (circuit power must be off) and displays the ohm value.

• Continuity Test: This is essentially a resistance test with an audible beep. In continuity mode (often denoted by a sound-wave or diode symbol), the DMM beeps if resistance is very low (indicating a closed circuit). It’s used to check fuses, switches, wiring, or solder joints for connectivity.

• Diode Test: The meter applies a small current to a diode (or transistor junction) and reads the forward voltage drop. In Diode mode (diode symbol), a working silicon diode typically shows about 0.7 V, while an open or shorted diode shows “OL” or 0 V respectively.

• Capacitance (F): Measures how much charge a capacitor can store. The meter charges the capacitor and displays its capacitance in farads (usually micro- or nano-farads). The capacitor must be discharged before testing.

• Frequency (Hz): Measures the frequency of an AC signal (in hertz). The meter counts cycles per second of the input waveform when set to Hz mode. Useful for checking oscillators or AC mains frequency.

• Additional features: Some DMMs also test temperature (via probe), duty-cycle, inductance, or have non-contact voltage detection.

Most digital meters are auto-ranging, meaning the meter automatically selects the best range for the signal. This simplifies use (you don’t have to know the expected range) and avoids overload. Manual-ranging meters require the user to pick the scale, which can be faster for known signals but is prone to error if the range is set incorrectly.

Basic Measurement Steps

• Measuring DC Voltage: 1. Turn the dial to the DC voltage range (V–). 2. Insert the black probe into the COM jack and the red probe into the VΩmA jack. 3. Connect probes across the circuit or component: red on positive, black on negative. 4. Read the voltage on the display (a “–” sign indicates reversed polarity). 5. Remove probes (black last) when done.

• Measuring AC Voltage: 1. Set the dial to the AC voltage (V~) position. 2. Connect black to COM and red to VΩmA (same jacks as DC). 3. Touch probes across the AC source (polarity doesn’t matter for AC). 4. Read the voltage (display shows the RMS value). 5. Remove probes (black last).

• Measuring Current: Note: Measuring current must be done with the meter in series. 1. Power off the circuit. Set the dial to the correct current type (AC or DC) and range. 2. Move the red lead to the amp input jack (often marked “10A” for high currents or “mA” for small currents). 3. Break the circuit at the point where you want to measure current. Connect the meter so current flows through it (red lead toward positive side). 4. Power on the circuit. 5. Read current on display (in A or mA). 6. Power off, then remove meter (put probes back in volt jack). 7. Check and replace meter fuse if it blew (a common safety design).

• Measuring Resistance/Continuity: 1. Turn off power and discharge all capacitors in the circuit. 2. Set the dial to the resistance (Ω) range or the continuity symbol. 3. Connect black to COM, red to VΩ jack. 4. Touch probes across the component or section: low resistance or continuity will cause a display (near 0 Ω) or a beep if in continuity mode. High/infinite resistance (open circuit) shows OL. 5. Remove probes when done.

• Testing Diodes: 1. Turn the dial to the diode symbol. 2. Connect COM/black to cathode (–) and red to anode (+) of the diode. 3. A good silicon diode shows about 0.5–0.9 V. Reverse the leads: a good diode shows “OL” (open) in reverse bias.

• Measuring Capacitance: 1. Discharge the capacitor fully. 2. Set the dial to the capacitance mode (often marked “F”). 3. Place COM/black on one lead, red on the other lead of the capacitor. 4. The meter will charge the cap and display its capacitance after a moment. 5. Replace capacitor if test completes.

• Measuring Frequency: 1. Set the dial to the Hz position. 2. Connect probes across the source of the signal (like AC source or signal generator). 3. The display will show the frequency in hertz.

Safety Tips

Using a DMM safely is critical. Follow these guidelines:

• Check the Rating: Never exceed the meter’s voltage/current limits (commonly 600 V DC/AC or as labeled). Use a proper category-rated meter (CAT II, III, IV) for high-energy circuits.

• Inspect Equipment: Examine probes and meter for damage before use. A cracked probe insulation or damaged case can be dangerous. Always wear appropriate protective gear (gloves, eye protection) in live environments.

• Correct Input Jacks: Always plug the black lead into COM first. Use the correct red jack for voltage or for current. Cheap meters that use the same jack for volts and amps are dangerous (they can short the circuit).

• Power Off for Ohms/Continuity/Diode: Always turn off circuit power and discharge capacitors before measuring resistance, continuity, diodes, or capacitance. Charged capacitors or live circuits will damage the meter or give false readings.

• Measure Current in Series: To measure current, the meter must be part of the circuit (series). Never try to measure current by placing the meter across a voltage source (it will short the supply). Ensure fuses are intact before current measurements.

• Replace Blown Fuses: If a fuse blows (common in current ranges), replace it immediately with the correct rating. Never bypass it.

• One Lead at a Time: When connecting or disconnecting probes, always remove the live (red) lead first and connect it last. This reduces risk of accidental shorting.

• Hold and Range: Use the meter’s “Hold” function to freeze unstable readings, and start on the highest range when unsure (auto-range handles this automatically).

Auto-Ranging vs Manual-Ranging

Most modern digital meters are auto-ranging: they automatically find the correct measurement range for the signal. This makes the meter simpler to use (you can move probes from one test to another without changing the dial) and reduces user error. Auto-range is especially handy for beginners or when signals change unexpectedly. The meter momentarily scans ranges, then settles on the best scale for accuracy.

Manual-ranging meters require the user to turn the dial to the expected range. This can be faster (no delay) if you know the approximate value, and it can prevent the meter from trying unsuitable ranges. Experienced users sometimes prefer manual mode for stability and slightly faster response. In practice, auto-ranging is convenient and common in affordable meters, while manual-ranging models (or manual-mode on a switch) can offer the user more control.

Choosing the Right DMM

Selecting a multimeter depends on your needs:

• Budget: Avoid extremely cheap meters (<$10) that lack safety features. A good beginner DMM costs around $30–$50 and offers reliable performance. Professional meters (Fluke, Keysight) can run hundreds of dollars.

• Basic Capabilities: For home or DIY, choose a DMM that handles at least 600 V AC/DC, 10 A current, and has resistance, continuity, and diode modes. Extra features like capacitance and frequency can be very useful for electronics projects.

• True RMS: If you will measure AC loads (motors, non-sine-wave circuits), a True-RMS meter is important for accuracy.

• Display & Ergonomics: Look for a clear display (3½ or 4-digit, plus backlight). Features like data-hold, auto-off, and low-battery indicator enhance usability.

• Automotive Use: Automotive circuits are typically 12–14 V DC. A good meter for vehicles should measure down to millivolts, have a 0–20 A range (for cranking currents), and often a duty-cycle mode for pulse signals. Some include special functions (RPM testing, temperature probes).

• Electronics/Hobby: If you work with low-power circuits, pick a meter with fine resolution (higher counts) and a low current range (mA/µA). Also consider meters with built-in logic/pulse counters or a 4-wire (Kelvin) mode for low-ohm measurement.

• Safety Rating: For household wiring work, choose a meter with CAT II/III rating. For automotive/hobby, CAT II is usually sufficient.

• Examples: The TechGearLab editorial notes that a budget True-RMS, auto-ranging meter with many functions (frequency, capacitance, continuity, diode) is ideal for most DIYers. The seller Nematic! advises getting a meter around $40–$50 that has separate jacks for volts and amps for safety.

Maintenance and Care

Proper upkeep extends your DMM’s life and reliability:

• Calibration: For precision work, have your meter calibrated regularly (annually or biennially). Regular calibration ensures its measurements remain within the specified accuracy.

• Battery: Replace the battery as soon as the low-battery indicator appears or if readings become erratic. A weak battery can cause incorrect readings or cause the meter to shut off mid-measurement.

• Fuses: Check the fuses if current readings are always zero. Keep spare fuses of the correct rating handy, especially for the high-current input.

• Cleanliness: Keep the meter and probes clean and dry. Wipe off dust or debris, and inspect probe tips and insulation for damage. Store probes safely (cap tips to avoid injury) and keep the meter in its pouch or case to prevent drops.

• Wear and Tear: Regularly inspect the case, dial, and connectors for cracks or wear. Damaged parts should be repaired or replaced. Loose connections (e.g. wobbly dial or jacks) can lead to measurement errors.

• Usage: Avoid subjecting the meter to excessive heat, moisture, or impacts. Don’t overload any range beyond its limits. Using the meter within its specifications keeps it accurate and safe.

Frequently Asked Questions

• Can I measure both AC and DC with the same multimeter? Yes. Nearly all digital multimeters have separate settings for DC and AC measurements. You just switch the dial to the correct symbol (e.g. V– for DC volts, V~ for AC volts). The same probes are used; AC readings are typically RMS values. Always ensure you’re on the correct mode (AC vs DC) and range before measuring.

• Why does my multimeter not read anything (or not show a value)? There are a few common reasons: (1) Wrong mode or range: Make sure the dial is on the right measurement type. For example, if testing voltage, don’t be on the amp or ohm range. (2) Dead battery: Low battery can cause no display; try replacing it. (3) Incorrect connections: Verify black probe is in COM and red probe is in the right jack (VΩ for volts/ohms, mA/A for current). (4) Circuit is off/open: If measuring voltage but the circuit is unpowered, you’ll read zero. In continuity/ohm mode, an open circuit shows “OL” (overload) and no beep. (5) Blown fuse: If only current measurements fail, a fuse inside the meter may be blown. Replace fuses and try again.

• What does auto-ranging mean? Auto-ranging multimeters automatically select the best measurement range for the signal. For example, if you’re measuring voltage and move from a small battery to a higher-voltage source, the meter will “hunt” the appropriate range and settle on it. This makes the meter easier to use (you don’t have to guess the range) and reduces errors. In contrast, on a manual-ranging meter you must turn the dial to the range that covers your expected measurement.

• Why does the meter beep or say “OL”? In continuity or diode mode, a beep means a closed circuit or low resistance. “OL” usually means an overload or open circuit. For example, in continuity mode, OL (or no beep) means no connection (open switch). In voltage/current modes, OL means the input is over range (too high to measure).

• How is True RMS different from average? (Advanced) For sinusoidal AC, average and true-RMS readings coincide. But for non-sine waveforms, only a True-RMS meter gives the correct effective voltage or current. If you measure motors or PWM signals, a True-RMS DMM is needed for accurate readings.

• Do I need a special meter for electronics vs. automotive? Often a good general-purpose DMM works for both, but consider your specific needs. Automotive meters should handle low DC voltages and high currents, and withstand a bumpier environment. Electronics meters should measure small currents and voltages precisely and may include features like low-Ω ranges and fine resolution. Some DMMs include both types of features. Always check that the meter’s specifications (voltage/current limits, accuracy, CAT rating) match your projects.

• Can a DMM measure capacitance or frequency? Many modern DMMs do include capacitance (F) and frequency (Hz) modes. These are advanced features: capacitance mode measures a capacitor’s value, and frequency mode counts cycles of an AC signal. Check the meter’s dial or menu for these symbols.

• How often should I calibrate my multimeter? For general hobby use, you can calibrate every 1–2 years. For professional or critical applications, annual calibration by a lab is recommended. Regular calibration and maintenance (cleaning, inspecting) ensure accuracy over time.
